QSC K10.2 Powered PA Speaker
QSC K10.2 Powered PA Speaker
Out of stock
Couldn't load pickup availability
Share
From QSC:
The QSC K.2 Series™ represents the best-in-class loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Specifications
| Model | K10.2 |
|---|---|
| Configuration | Multi-purpose, 2-way active loudspeaker |
| LF Transducer | 254 mm (10-inch), cone |
| HF Transducer | 35.6 mm (1.4-inch) titanium diaphragm compression driver |
| Frequency Response (-6 dB) | 56 Hz - 20 kHz |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Nominal Coverage Angle | 90° Axisymmetric |
| Maximum Rated SPL1 Amplifier Cooling |
130 dB @1 M, peak 124 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable speed fan |
| Controls | Power 3 × Level Rotary encoder (push) 2 × selection buttons |
| Indicators | Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch x 1-inch) 2 × Power LED (front and rear) 3 × Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED |

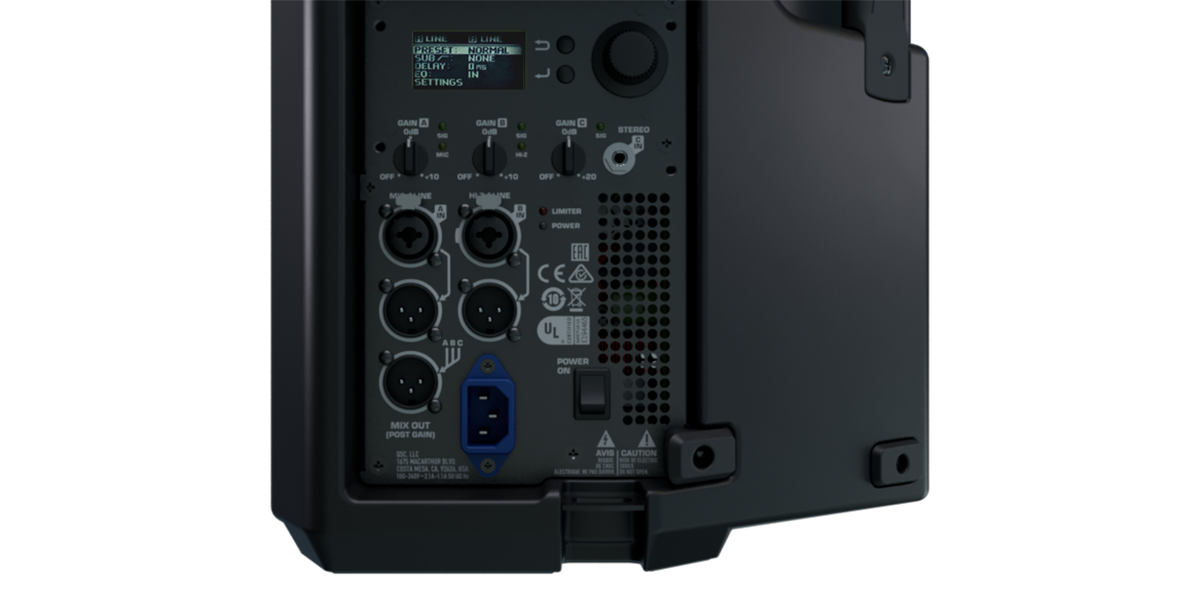

| Connectors | 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input 1 × 3.5 mm TRS (Stereo Input) 2 × XLR/M (Loop-thru Output) 1 × XLR/M (Mix Output) 1 × locking IEC power connector |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power2 | 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A |
| AC Power Consumption - Standby | 0.2 A at any voltage |
| Enclosure Details | |
| Enclosure | Impact Resistant ABS |
| Attachment Points | 2 × M10 threaded inserts plus Pull-Back |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel, internal cloth lining |
| Speaker Dimensions (H×W×D) | 519 × 320 × 300 mm 20.4 × 12.6 × 11.8 in |
| Carton Dimensions (H×W×D) | 570 × 440 × 406 mm 22.5 × 17.3 × 16 in |
| Net Weight | 14.5 kg / 32 lb |
| Shipping Weight | 17.6 kg / 38.8 lb |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Optional Accessories | K10 Tote, K10 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cove K10.2 Yoke |
1 Calculated for 1 m, based on sensitivity (full-space for full range systems and half-space for LF-only and subwoofer systems) and peak power capability of amplifier.
2 1/8 power is representative of current draw with typical music program material with occasional clipping.
All specifications are subject to change without notice.
Due to unprecedented demand, this product may currently be out of stock at some retailers. We continue to replenish supply regularly and are working to fulfill all orders as rapidly as possible. Please check with your dealer for the latest delivery updates.
