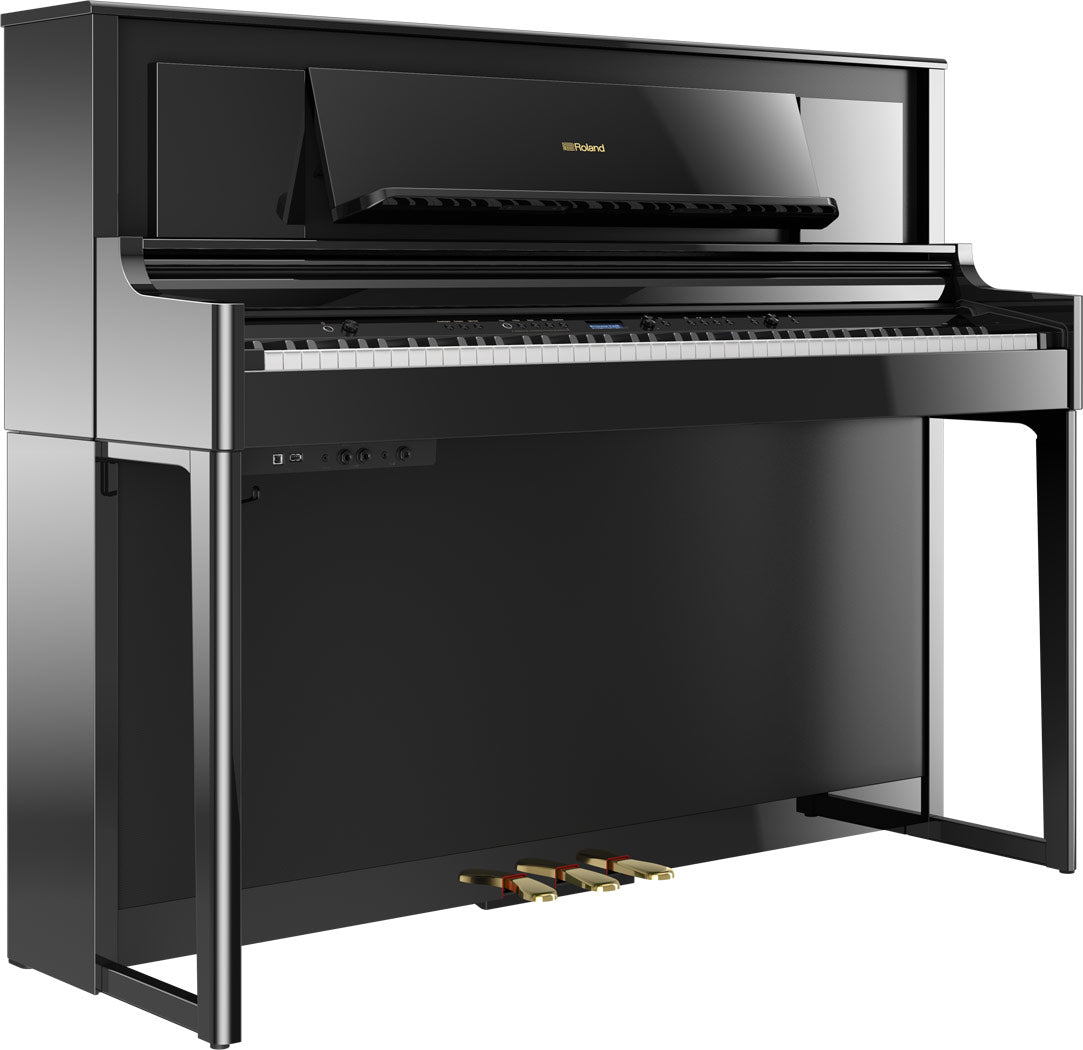

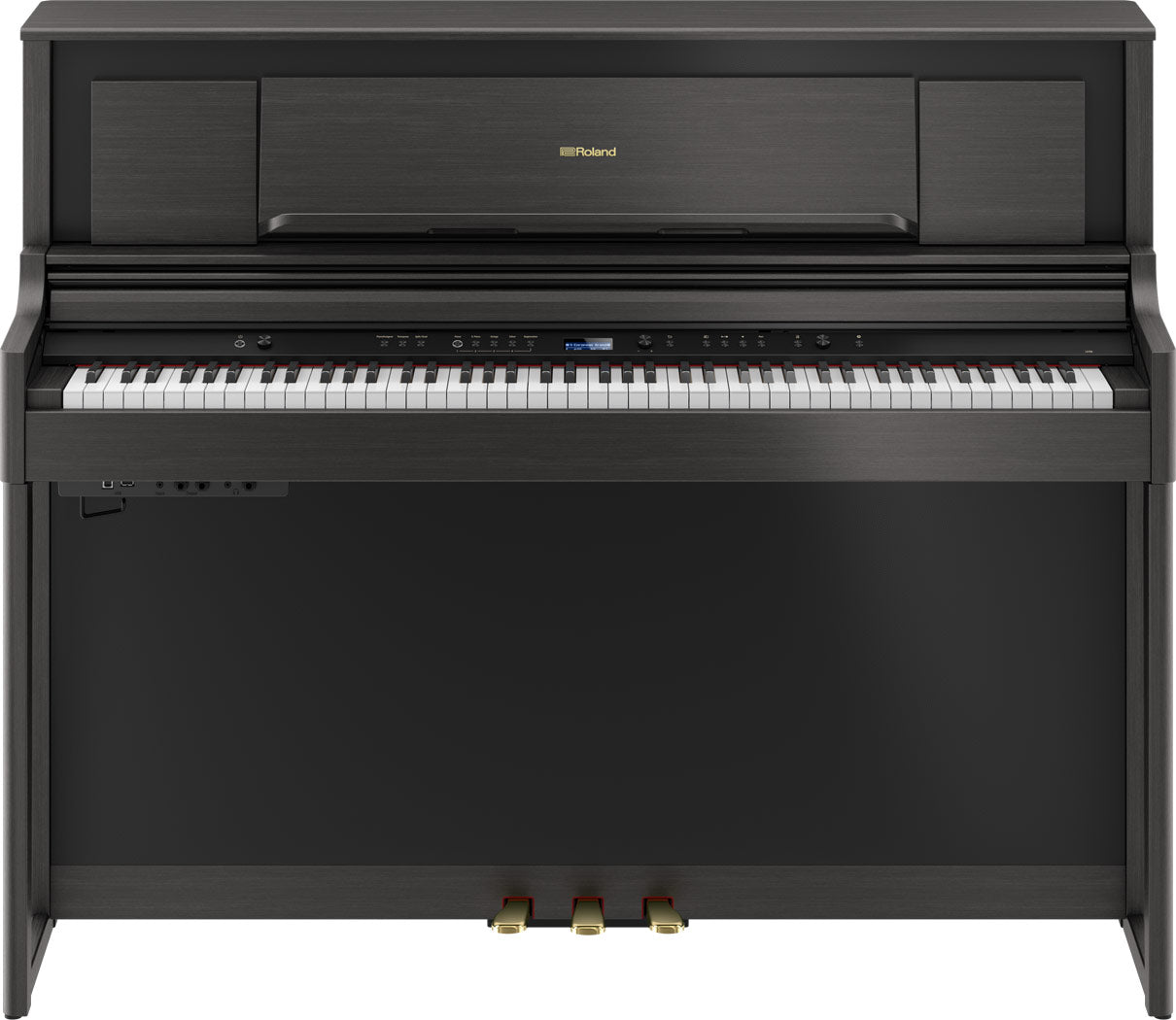

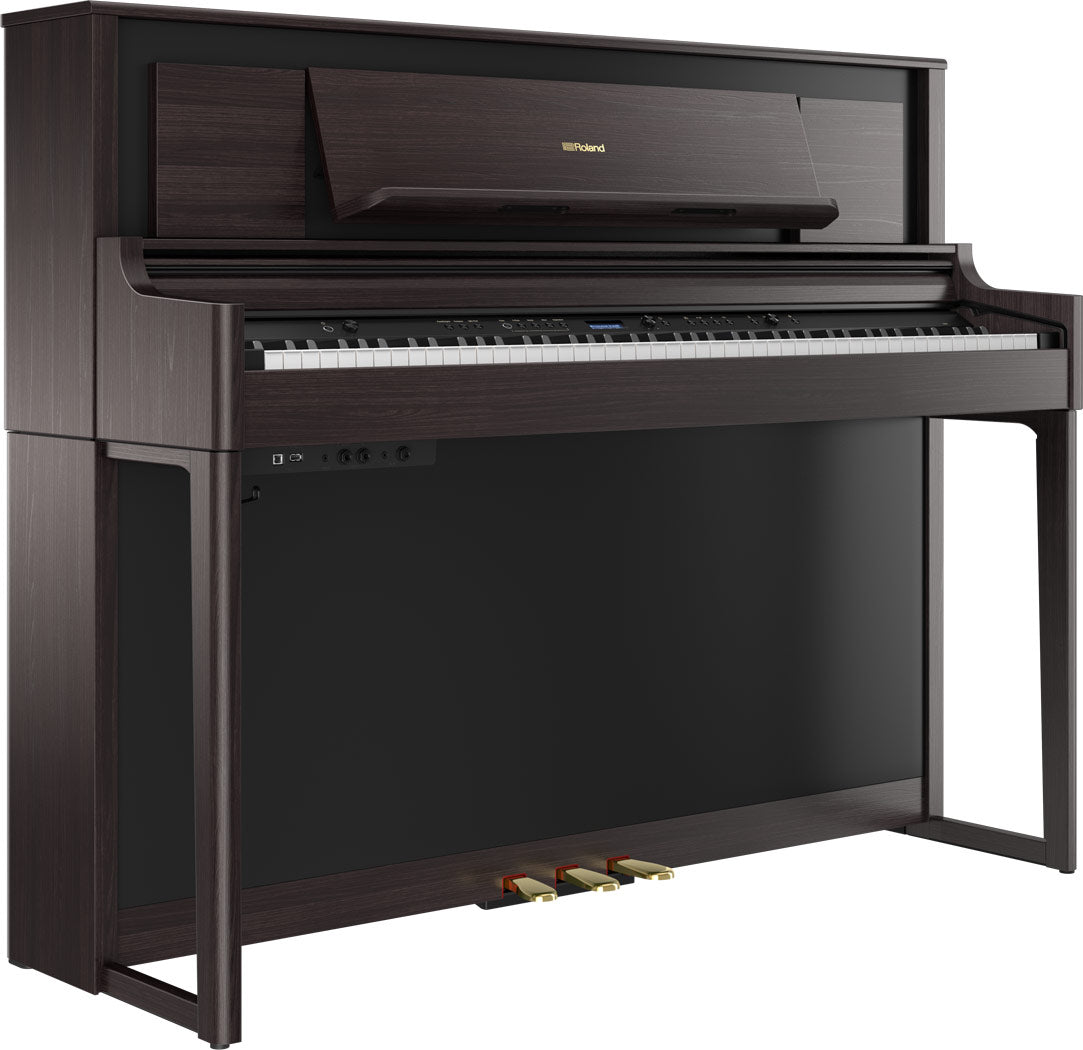

Roland LX706

The high-end home piano with six-speaker system, grand tone and ambience effects

For players investigating the Roland LX700 series and looking for the right balance between features and price, the LX706 demands a closer look. Designed for discerning pianists, the LX706 sits at the mid-point of the LX700 range, recreating the classic performance of an acoustic grand in a home-friendly format. Just like the flagship LX708 model, you’ll find a choice of authentic piano tones and onboard ambience technology, plus a dynamic Hybrid Grand keyboard to spark your creativity. But with a more compact cabinet, closed-lid design and six-speaker system, the LX706 matches its pro-level performance with a budget-conscious price.

• Express yourself with Hybrid Grand Keyboard and Progressive Damper Action Pedals
• Authentic acoustic tone from Roland’s PureAcoustic Piano Modeling technology
• Choice of two world-class piano models – European grand and American grand
• Capture the atmosphere of the world’s greatest stages and studios
• ‘My Stage’ allows you to select the best combination of piano sound and ambience to emulate specific playing venues
• Acoustic Projection System, with 3-way/6-speaker that work together to recreate the deep, rich sound field of an acoustic piano
• Headphones Acoustic Projection for immersive and realistic playing experience when practicing on headphones
• Includes a large and versatile collection of non-piano sounds such as electric piano, strings, organ, and many others
• Simple and modern luxury cabinet design featuring elegant front legs and sophisticated curves, invites you to play everyday
• Connect your smartphone or tablet via Bluetooth® and practice piano with audio from apps routed through the piano’s speaker system
• Compatible with Piano Every Day app which encourages you to play the piano more often

Sound Generator

Piano Sound

Piano Sound: Pure Acoustic Piano Modeling

Max. Polyphony

Piano: Limitless (solo playing using 'Piano' category tones)
Other: 256

Tones

Total 324 Tones

Ambience

Ambience

Pure Acoustic Ambience
Type: Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral
Depth: 11 types

My Stage

My Stage

12 types

Keyboard

Keyboard

Hybrid Grand Keyboard: Wood and Plastic Hybrid Structure, with Escapement and Ebony/Ivory Feel (88 keys)

Pedal

Pedal

Progressive Damper Action Pedal (Damper pedal: capable of continuous detection, Soft pedal: capable of continuous detection/function assignable, Sostenuto pedal: function assignable)

Speaker System

Speaker System

Acoustic Projection

Speakers

Cabinet Speakers: 25 cm (9-7/8 inches) x 2 (with Speaker Box)
Near-field Speakers: (12 cm (4-3/4 inches) x 8 cm (3-3/16 inches)) x 2 (with Speaker Box)
Spatial Speakers: 2.5 cm (1 inches) x 2 (Dome type)

Rated Power Output

25 W x 2
7 W x 2
5 W x 2

Headphones

Headphones

Headphones Acoustic Projection

Tuning, Voicing

Touch Sensitivity

Key Touch: 100 types, fixed touch
Hammer Response: 10 types

Master Tuning

415.3 – 466.2 Hz (adjustable in increments of 0.1 Hz)

Temperament

10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key

Effects

Brilliance

Piano Designer

Lid
Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Noise
Soft Pedal Type
Single Note Tuning
Single Note Volume
Single Note Character

Internal Songs

Internal Songs

US: Total 399 songs
Other: Total 389 songs
Listening: 22 songs
Ensemble: 30 songs
Entertainment: 20 songs
Easy Piano: 10 songs (US only)
Let's Sing with DO RE MI: 30 songs
Lesson: 287 songs (Scale, Hanon, Beyer, Burgmuller, Czerny 100)

Data Playback

Playable Software

Standard MIDI Files (Format 0, 1)
Audio File (WAV: 44.1 kHz, 16-bit linear format, MP3: 44.1 kHz, 64 kbps - 320 kbps, requires USB Flash Memory)

Recorder

Recordable Software

Standard MIDI Files (Format 0, 3 parts, Approx. 70,000 notes memory)
Audio File (WAV: 44.1 kHz, 16-bit linear format, requires USB Flash Memory)

Bluetooth

Bluetooth

Audio: Bluetooth Ver 3.0 (Supports SCMS-T content protection)
MIDI: Bluetooth Ver 4.0

Compatible Android / iOS Apps (Roland)

Compatible Android / iOS Apps (Roland)

Roland Piano App
Piano Designer

Convenient Functions

Convenient Functions

Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Registration
Dual
Split
TwinPiano (with Individual Mode)
Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Volume limit function
Panel Lock
Auto Off

Cabinet

Cabinet

Music rest: with Music holders
Key cover: Slide type, with Keyboard Lid Switch and Classic Position

Other

Display

Graphic OLED 128 x 32 dots

Connectors

DC In jack
Input jacks: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type
USB Computer port: USB B type
USB Memory port: USB A type
Phones jack x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

Power Supply

AC adaptor

Power Consumption

17 W (16 W – 85 W)

Accessories

Owner's Manual
Leaflet “USING THE UNIT SAFELY”
"Roland Piano Masterpieces"
AC adaptor
Power cord
Headphone hook

Option (sold separately)

Headphones

Size (including piano stand)

Width

1,383 mm
54-1/2 inches

Depth

493 mm
19-7/16 inches

Height

1,118 mm
44-1/16 inches

Weight (including piano stand)

LX706-PE

98.0 kg
216 lbs 1 oz

LX706-CH, LX706-CHL, LX706-DR

96.5 kg
212 lbs 12 oz
