Roland TD-02K Electronic Drums

The TD-02 series brings you the world’s finest entry-level electronic drumming experience—at an affordable price. Backed by decades of V-Drums innovation, these compact and highly expressive kits are far greater than the sum of their parts. Every element works together to form a complete musical foundation, from the world-class sounds and ultra-responsive pads to the onboard practice tools, robust hardware, and practical features for reducing noise when playing at home. And with expansion options such as Bluetooth® connectivity for mobile devices, upgradable pads, and more, you can easily grow your setup with genuine Roland accessories as needs evolve.

The TD-02K is the most compact kit in the series. It features a snare pad, three tom pads, a quiet beaterless kick pedal, three cymbal pads (hi-hat, crash, and ride), and a unique height-adjustable stand ideal for younger players.

Specifications

Kit Configuration (*1)

Drum sound module: TD-02 x 1
Snare: PD-4 x 1
Tom: PD-4 x 3
Hi-Hat: CY-5 x 1
Hi-Hat control pedal: FD-1 x 1
Crash: CY-5 x 1
Ride: CY-5 x 1
Kick: KT-1 x 1
Drum Stand: MDS-MINI x 1

Drum Kits

16

Coach Functions (5 modes)

Time Check (easy)
Time Check (hard)
Quiet Count
Auto Up/Down
Change-Up

Metronome

Tempo (20--260)
Rhythm Type (5 types)
Sounds (15 types)

Display

16 Characters x 2 Lines LCD (with backlight)

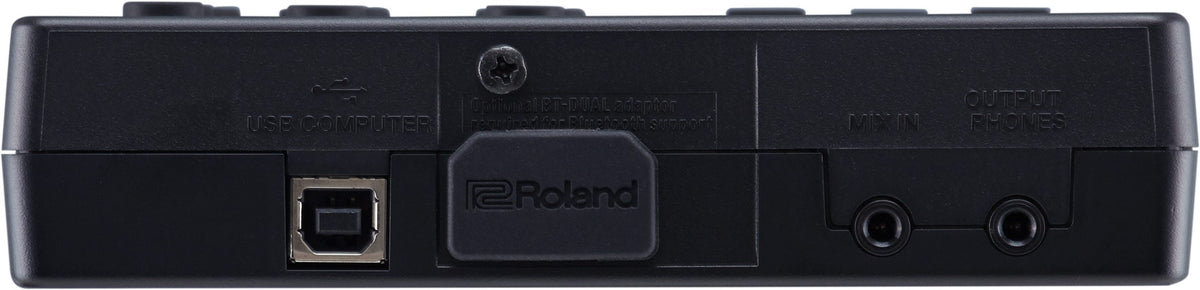

Connectors

OUTPUT/PHONES Jack: Stereo Miniature Phone Type
MIX IN Jack: Stereo Miniature Phone Type
USB COMPUTER Port: USB B Type
TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

USB COMPUTER

Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
Driver Mode: Generic, Vendor
Protocol: USB MIDI, USB Audio *2

USB Audio

Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 Channels
Playback: 2 Channels

Power Supply

AC Adaptor (DC 12 V)

Current Draw

200 mA

Accessories

Setup Guide
Leaflet "USING THE UNIT SAFELY"
AC Adaptor
Special Connection Cable
Drum Key

Options (sold separately)

Additional Crash Cymbal (Crash 2): OP-TD1C
Snare: PDX-6, PDX-8 *3
Kick: KD Series
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-2X
V-Drums Mat: TDM Series
Noise Eater: NE Series
Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

Size and Weight

Width

1,000 mm
39-3/8 inches
(Including the drum throne)

Depth

1,100 mm
43-5/16 inches
(Including the drum throne)

Height

1,150 mm
45-5/16 inches
(Including the drum throne)

Weight

12.1 kg / 26 lbs 11 oz

*1 Drum throne, drumsticks, and headphones are not included.

*2 In order to use USB audio, switch to vendor mode and use the vendor driver.

*3 The MDH-Standard is required to attach the PDX-6 and the PDX-8.
