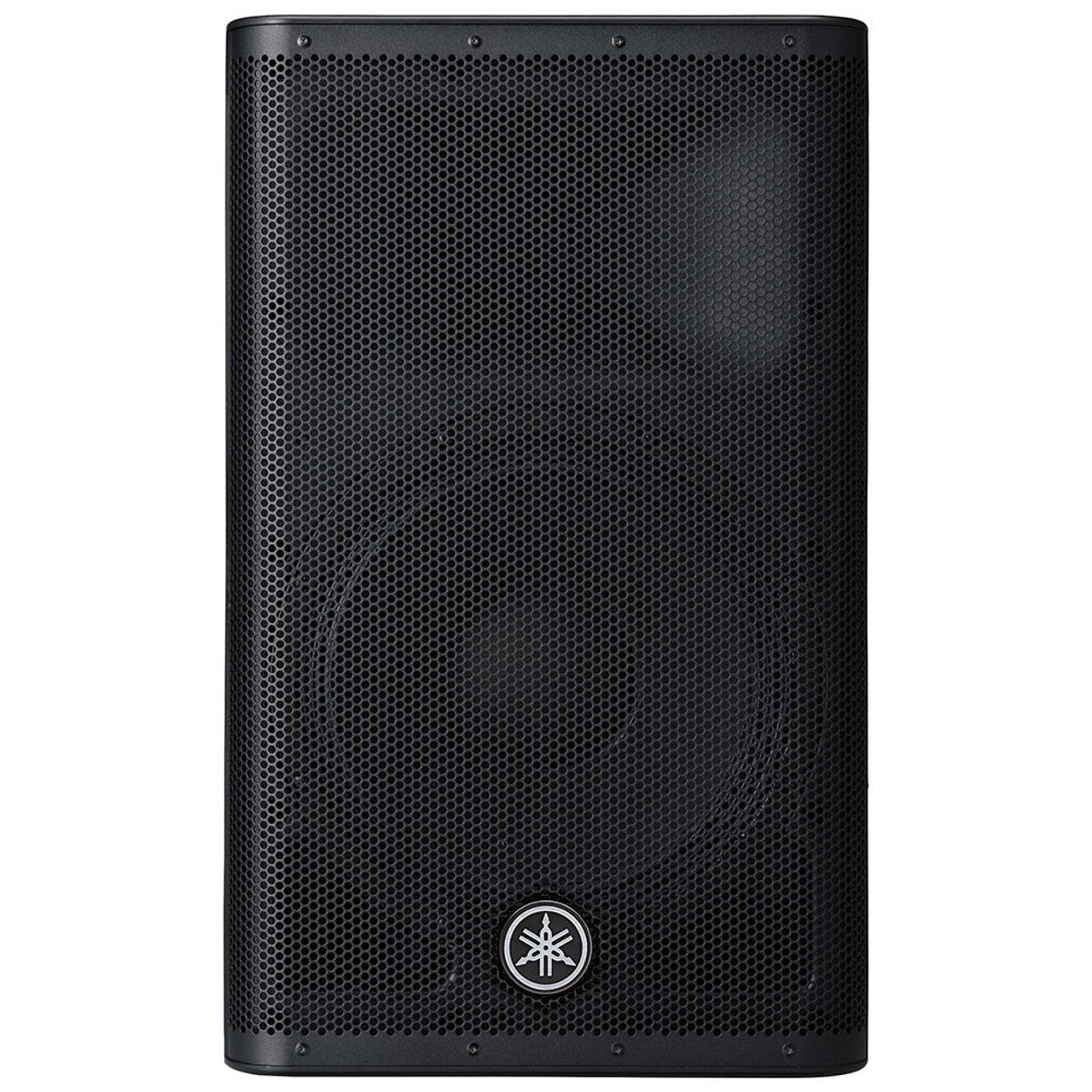

Yamaha DXR12mkII 12" 2-way Powered Loudspeaker

The DXR12mkII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 134dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.

Tech Specs

• Powered: Yes
• Power Configuration: Bi-amped
• Channels:3-channel mixer
• LF Driver Size:12" woofer
• HF Driver Size:1.75" Neodymium compression driver
• LF Driver Power Amp: 950W
• HF Driver Power Amp: 150W
• Total Power:1100W Class D

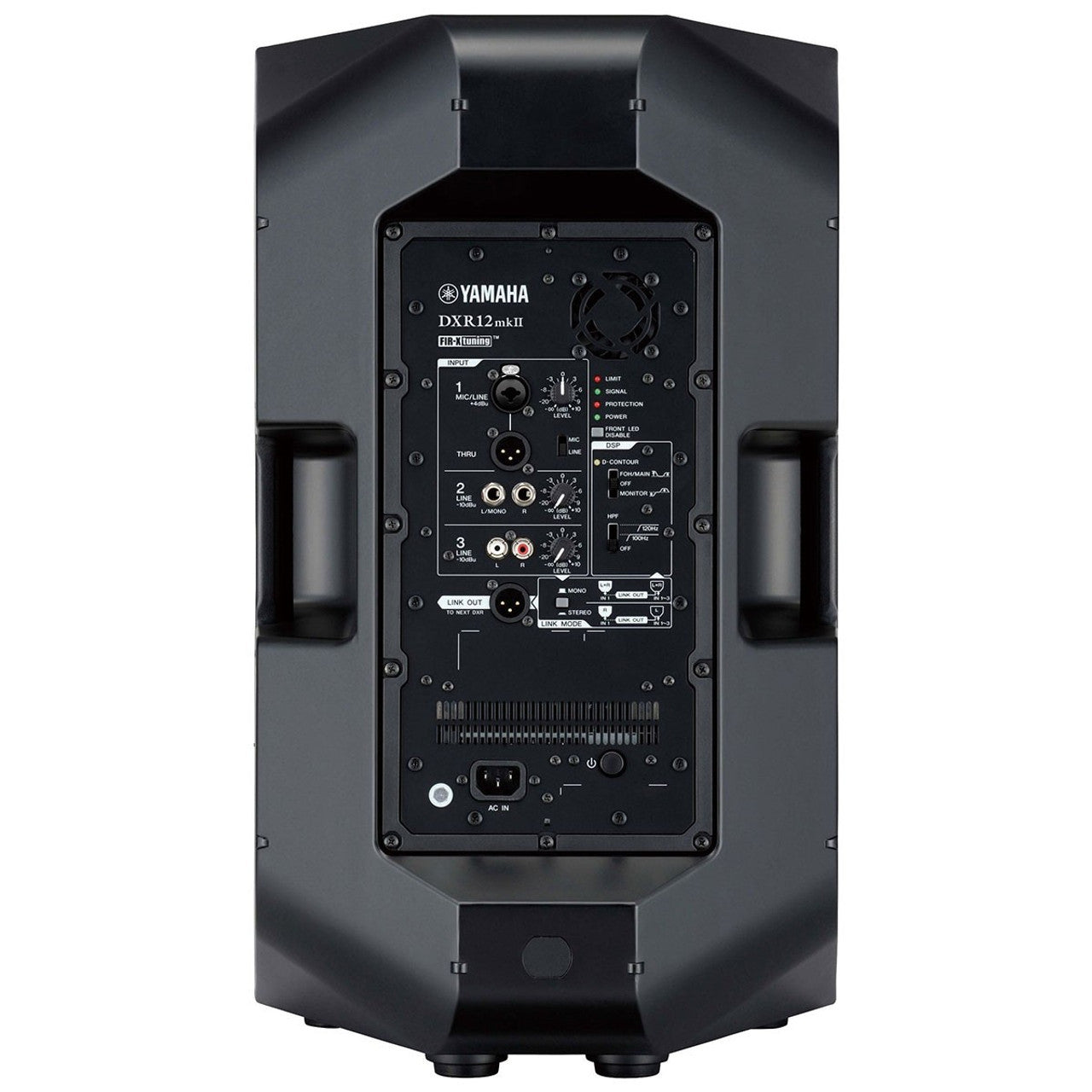

• Inputs:1 x XLR (mic/line), 2 x 1/4" (L/mono, R), 1 x Dual RCA Stereo
• Outputs:1 x XLR (link out), 1 x XLR (thru)
• Frequency Range: 52Hz-20khz
• Crossover Frequency: 2100 Hz
• Maximum Peak SPL:134 dB SPL
• Horizontal Coverage Angle:90°
• Vertical Coverage Angle:60°
• Signal Processing: 100Hz/120Hz Highpass Filter, D-Contour Multi-band Compression
• Enclosure Material: ABS
• Mounting Options: Pole, Floor Wedge, Fly
• Power Source: Standard IEC AC cable
• Height: 23.6"
• Width: 14.25"
• Depth: 13.75""
• Weight:41 lbs.
• Manufacturer Part Number:DXR12mkII
